HIGH IMPACT CLIPPED ALUMINUM S-14000

Our passion is serving our customers

Outswing Storefront S-70000



INSTRUCTIONS TO DETERMINE REQUIRED INTERIOR CLIPPED MULLION:

USE MULLION/ANCHOR LOAD CHARTS ON SHEETS 30 THRU 40 AS FOLLOWS:



  • STEP 1. Determine A.S.D design load required for particular opening per section 1620 of florida building code.
  • STEP 2. Use Florida approval approved glazing products meeting above A.S.D. Design load requirements.
  • STEP 3. Use glazing products connection to mullion as per applicable product approval.
  • STEP 4. Using charts on sheets 7 thru 29, select mullion with capacity exceeding the A.S.D. Design load specified in step 1 above. See clip details on sheets 4 thru 6.
  • STEP 5. Using charts on sheets 7 thru 29, select anchor clip, and connection type with A.S.D. Design pressure rating larger than the A.S.D. Design loads determined in step 1 above.



INSTRUCTIONS TO DETERMINE REQUIRED END CLIPPED MULLION:

USE MULLION/ANCHOR LOAD CHARTS ON SHEETS 30 THRU 40 AS FOLLOWS:



  • STEP 1. Determine A.S.D design load required for particular opening per section 1620 of florida building code.
  • STEP 2. Use Florida approval approved glazing products meeting above A.S.D. Design load requirements.
  • STEP 3. Use glazing products connection to mullion as per applicable product approval.
  • STEP 4. Using charts on sheets 30 thru 40, select mullion with capacity exceeding the A.S.D. Design load specified in step 1 above. See clip details on sheets 4 thru 6.
  • STEP 5. Using charts on sheets 30 thru 40, select anchor clip, and connection type with A.S.D. Design pressure rating larger than the A.S.D. Design loads determined in step 1 above.
  • STEP 5. Using charts on sheets 30 thru 40, select anchor clip, and connection type with A.S.D. Design pressure rating larger than the A.S.D. Design loads determined in step 1 above.
5. All glazing products used with these mullions must meet the applicable florida building code approved requirements i.E. Wind load, air and water infiltration, forced entry resistant, safeguards, etc

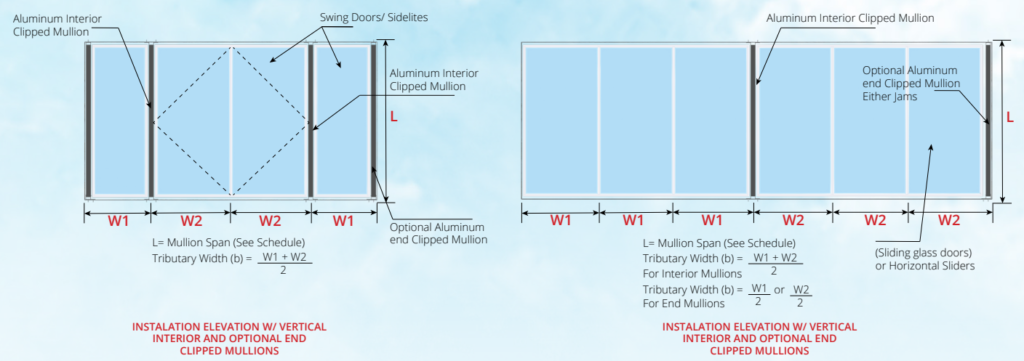

This product approval document (P.A.D.) Applies to two or more fenestrations mulled together in any combination where interior or end mullion is clipped to existing structure. Mullion’s structural adequacy has been verified
without the contribution of fenestration frames attached to it.
