HIGH IMPACT OUTSWING STOREFRONT S-12000
Our passion is serving our customers
Outswing Storefront S-12000
The system integrates with Entrance Door with medium stile 4″ with a variety of locking hardware 2- and 3-point lock including panic device concealed vertical rod exit device. 1/2” threshold bumper, 1/4” threshold saddle, and height sill 1. 1/2” for water resistance (8 P.S.F)
Available Finishes:
- White, Bronze, and Clear Anodized
Standard Glass Colors:
- Clear, Gray, Bronze, Solexia Green, White Interlayer
Glass Types:
- 7/16” Laminated
- 9/16” Laminated
- 15/16” Insulated Laminated
Glass Coatings:
- Energy efficient low-E options
- SB-60 & SB-70
Standard Hardware:
- #14 X 2 3/4” with 180 KSI tensile strength, coated with Xyaln 5000 series Floura Polymer coating
Standard Features:
- 6″ deep frame
- Fastener Cover
- Double weatherstripping
- Strong Structural Glazing
Optional Items:
- Colonial muntin
Aluminum Specification:
- Tempered 6063-T6
- Overall Thickness 0.80
Water resistant at 19.5 P.S. F. (ASTM E 547/E 331 Air Infiltration at 6.24 P.S.F. (ASTM E 283) Commercial rated Forced entry test (ASTM F588) Drop load test 400 ft. lbs. ANSIZ97.1

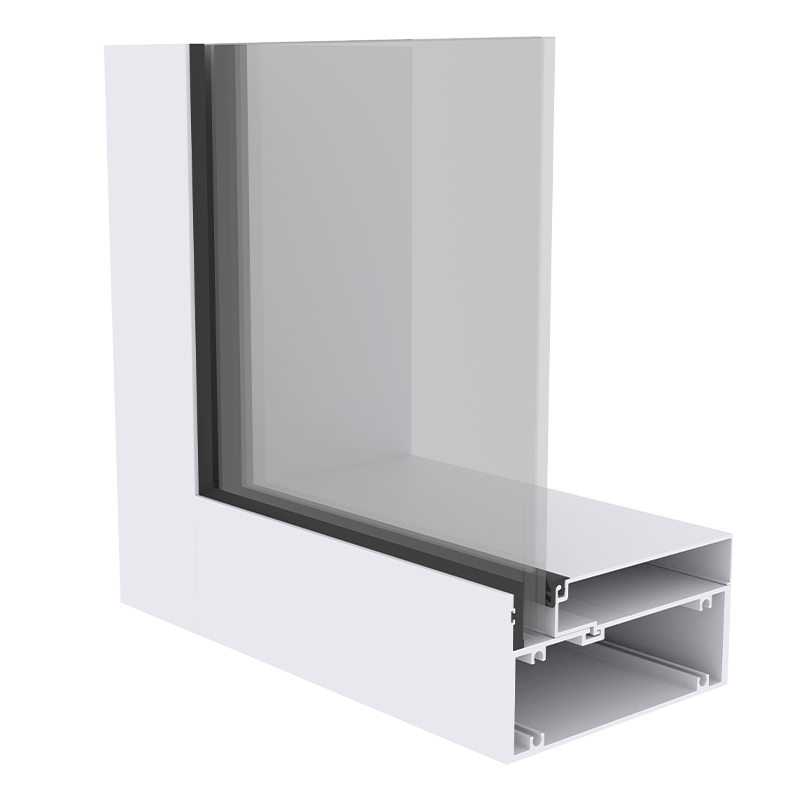

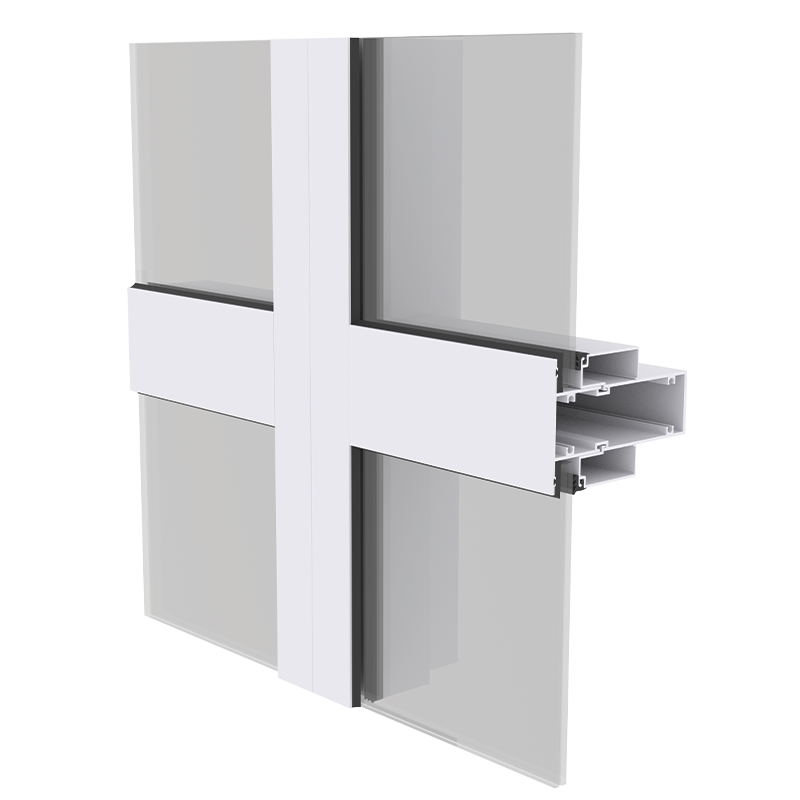

Jamb, Head, and Sill 3¨ X 6 ¨ Vertical and Horizontal Mullion 4¨ X 6¨ Small Fasteners Covers Large Fasteners Covers 4 Assembly screws per corner joint 1/4” X 2. 3/4”
